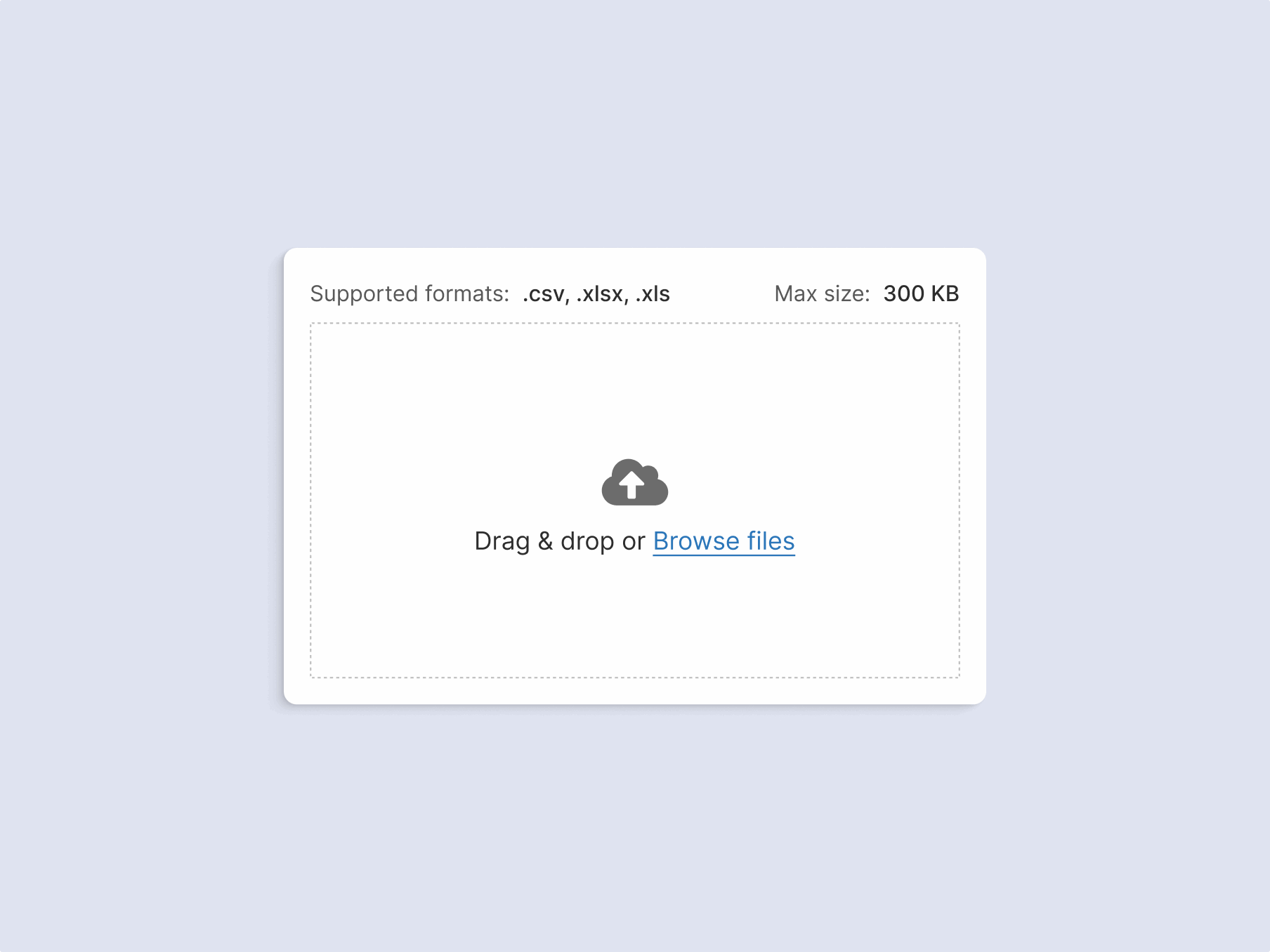

Gif to represent diffenent states of revamped file uploader

June 2023 - July 2023

Timeline

Self-initiated UX Evaluator

Role

June 2023 - July 2023

Timeline

Self-initiated UX Evaluator

Role

Background

Background

Our new file uploader needed a usability boost

Our new file uploader needed a usability boost

The file picker was added to our design system to meet new product requirements. Out of curiosity, we conducted a heuristic evaluation from a user's perspective. This case study logs the evaluation criteria, results, use cases, prioritization, and recommendations.

The file picker was added to our design system to meet new product requirements. Out of curiosity, we conducted a heuristic evaluation from a user's perspective. This case study logs the evaluation criteria, results, use cases, prioritization, and recommendations.

Methodology

Methodology

Conducted heuristic evaluation based on Nielsen’s 10 Usability Heuristics for User Interface Design.

Conducted heuristic evaluation based on Nielsen’s 10 Usability Heuristics for User Interface Design.

Overview

Overview

Purpose of file uploader

Purpose of file uploader

Enables users to upload files from their devices to the application.

Enables users to upload files from their devices to the application.

Key Features

Key Features

  • Shows all acceptable file formats

  • Drag-and-drop functionality

  • Reupload or delete files

  • Error notifications for unsupported file types or sizes

  • Shows all acceptable file formats

  • Drag-and-drop functionality

  • Reupload or delete files

  • Error notifications for unsupported file types or sizes

Tested Scenarios

Tested Scenarios

  • Single/multiple file selection

  • Instant vs. button-triggered upload

  • Accidental file removal

  • Single/multiple file selection

  • Instant vs. button-triggered upload

  • Accidental file removal

Metric system

Metric system

Factors

Factors

1

Frequency and Scope

How often does the issue occur, and how widespread is its impact across different user scenarios and use cases? Is it isolated or common across various interactions?

1

Frequency and Scope

How often does the issue occur, and how widespread is its impact across different user scenarios and use cases? Is it isolated or common across various interactions?

1

Frequency and Scope

How often does the issue occur, and how widespread is its impact across different user scenarios and use cases? Is it isolated or common across various interactions?

1

Frequency and Scope

How often does the issue occur, and how widespread is its impact across different user scenarios and use cases? Is it isolated or common across various interactions?

1

Frequency and Scope

How often does the issue occur, and how widespread is its impact across different user scenarios and use cases? Is it isolated or common across various interactions?

2

Experience Impact

How does the issue affect the overall user experience? Does it lead to frustration, confusion, or dissatisfaction, and to what degree?

2

Experience Impact

How does the issue affect the overall user experience? Does it lead to frustration, confusion, or dissatisfaction, and to what degree?

2

Experience Impact

How does the issue affect the overall user experience? Does it lead to frustration, confusion, or dissatisfaction, and to what degree?

2

Experience Impact

How does the issue affect the overall user experience? Does it lead to frustration, confusion, or dissatisfaction, and to what degree?

2

Experience Impact

How does the issue affect the overall user experience? Does it lead to frustration, confusion, or dissatisfaction, and to what degree?

Severity Ratings

Severity Ratings

S0

No issues

S0

No issues

S0

No issues

S0

No issues

S0

No issues

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S4

Critical issues (fix immediately)

S4

Critical issues (fix immediately)

S4

Critical issues (fix immediately)

S4

Critical issues (fix immediately)

S4

Critical issues (fix immediately)

Heuristic Evaluation Process

Heuristic Evaluation Process

I used a tailored evaluation sheet for each heuristic rule, assessed the severity of each issue, and provided recommendations. Based on these, I redesigned parts of the component using our design system.

H1 - Visibility of System Status

H1 - Visibility of System Status

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

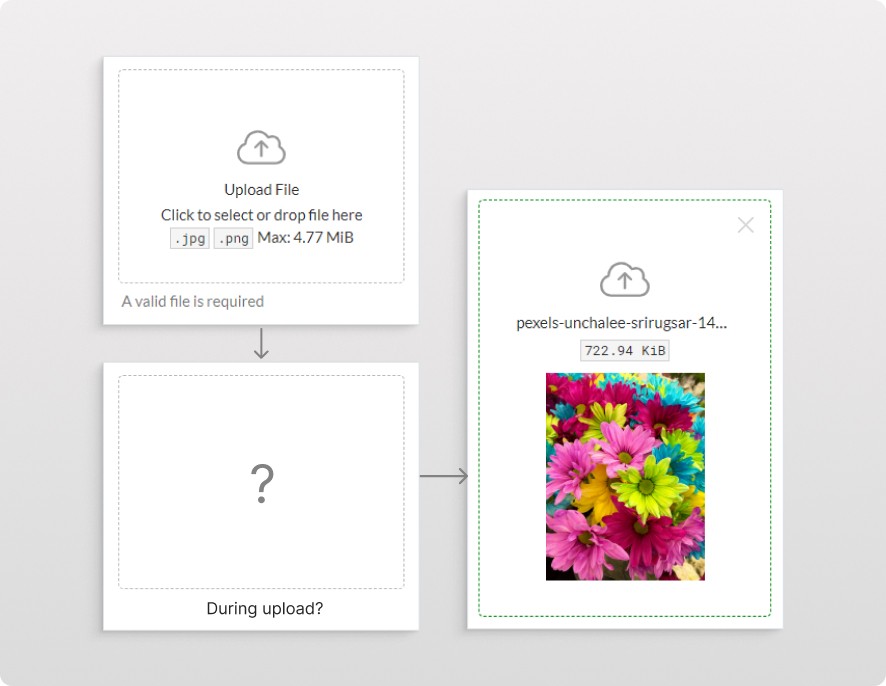

image to show no progress state in existing file uploader component
image to show no progress state in existing file uploader component
image to show no progress state in existing file uploader component
image to show no progress state in existing file uploader component
image to show no progress state in existing file uploader component

Issue

Issue

Issue

Issue

Issue

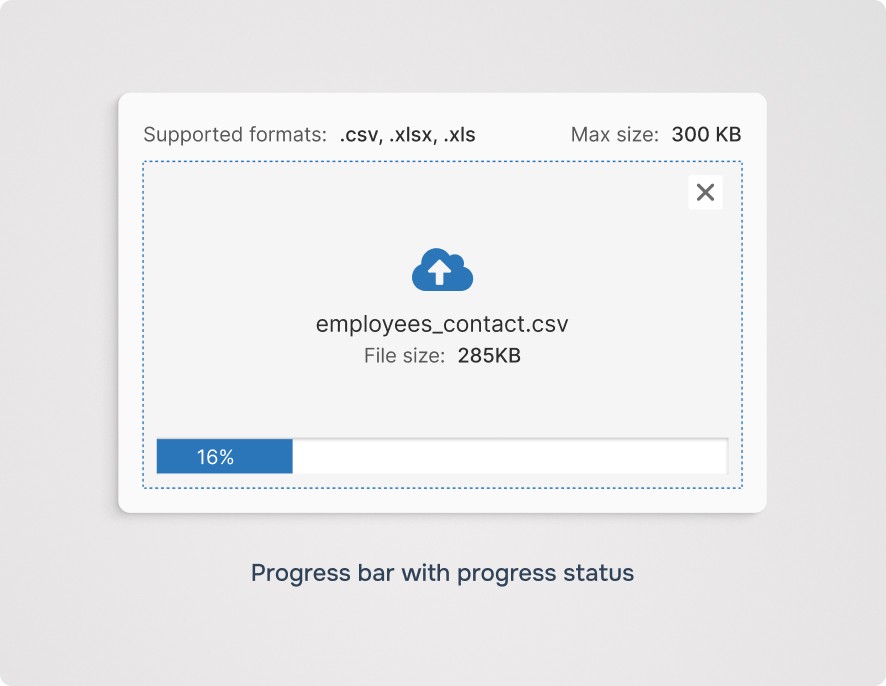

Image to show file uploader with progress state
Image to show file uploader with progress state
Image to show file uploader with progress state
Image to show file uploader with progress state
Image to show file uploader with progress state

Recommendation

Recommendation

Recommendation

Recommendation

Recommendation

H2 - Match Between System and the Real World

H2 - Match Between System and the Real World

No violation found

No violation found

No violation found

No violation found

No violation found

H3- User Control and Freedom

H3- User Control and Freedom

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

S3

Major usability issues (high priority)

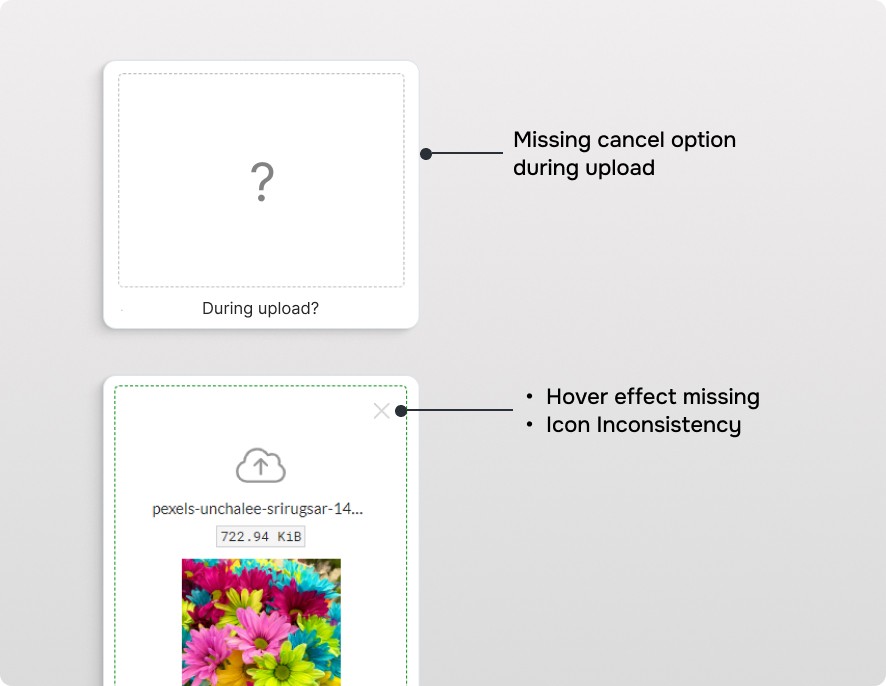

Image to show absense of cancel option
Image to show absense of cancel option
Image to show absense of cancel option
Image to show absense of cancel option
Image to show absense of cancel option

Issue

Issue

Issue

Issue

Issue

Image to show option of cancel,delete and reupload
Image to show option of cancel,delete and reupload
Image to show option of cancel,delete and reupload
Image to show option of cancel,delete and reupload
Image to show option of cancel,delete and reupload

Recommendation

Recommendation

Recommendation

Recommendation

Recommendation

H4 - Consistency and Standards

H4 - Consistency and Standards

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

S2

Minor usability issues (medium priority)

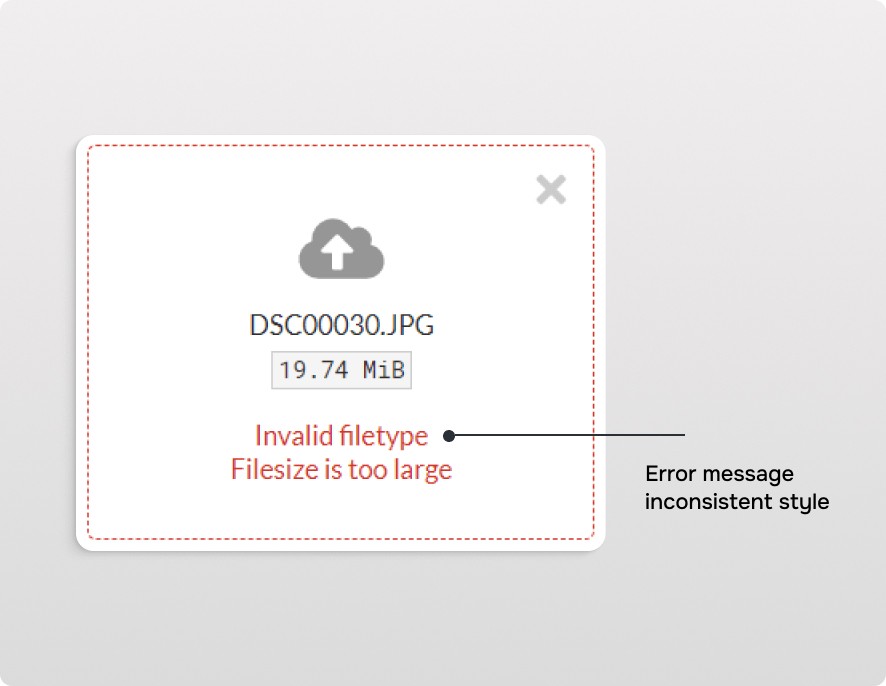

Image to show inconsistent error message style
Image to show inconsistent error message style
Image to show inconsistent error message style
Image to show inconsistent error message style
Image to show inconsistent error message style

Issue

Issue

Issue

Issue

Issue

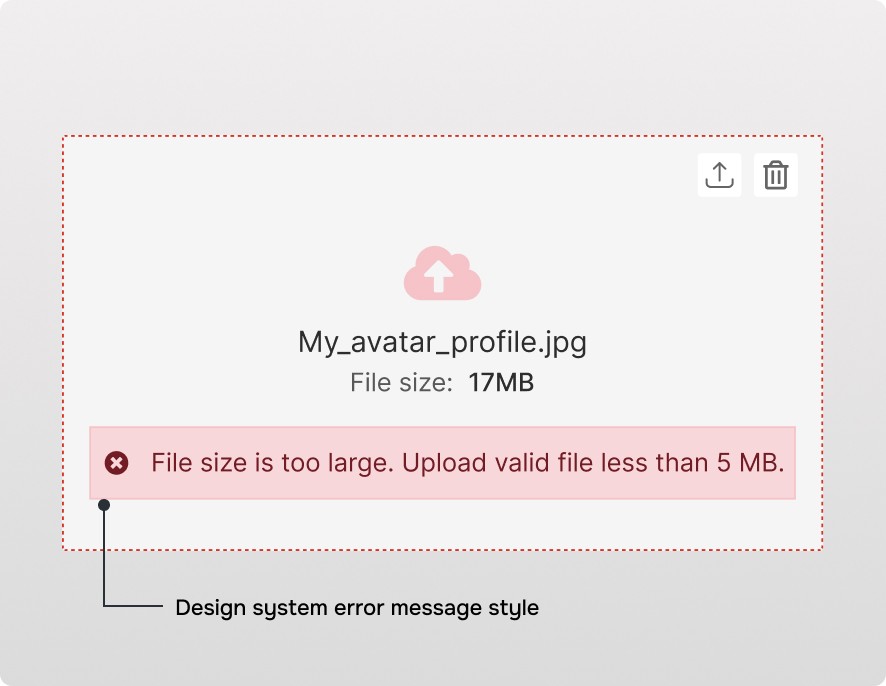

Image to show error message in our design system style
Image to show error message in our design system style
Image to show error message in our design system style
Image to show error message in our design system style
Image to show error message in our design system style

Recommendation

Recommendation

Recommendation

Recommendation

Recommendation

H5 - Error Prevention

H5 - Error Prevention

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

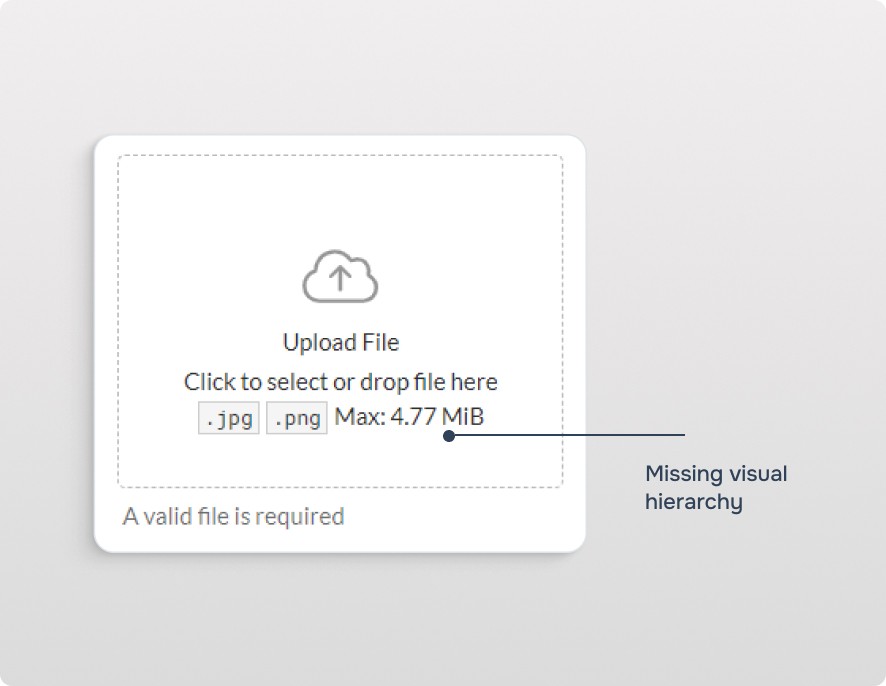

Image to show current visual representation of image size and format
Image to show current visual representation of image size and format
Image to show current visual representation of image size and format
Image to show current visual representation of image size and format
Image to show current visual representation of image size and format

Issue

Issue

Issue

Issue

Issue

Image to show better visual representation to show image format and size in always accessible mode.
Image to show better visual representation to show image format and size in always accessible mode.
Image to show better visual representation to show image format and size in always accessible mode.
Image to show better visual representation to show image format and size in always accessible mode.
Image to show better visual representation to show image format and size in always accessible mode.

Recommendation

Recommendation

Recommendation

Recommendation

Recommendation

H6- Recognition Rather Than Recall

H6- Recognition Rather Than Recall

No violation found

No violation found

No violation found

No violation found

No violation found

H7 - Flexibility and Efficiency of Use

H7 - Flexibility and Efficiency of Use

S2

Minor usability issues (medium priority)

S2 (Minor) with potential for S3. It can be bump to S3 if multi-file uploads are common or time-consuming in our product's workflows.

S2

Minor usability issues (medium priority)

S2 (Minor) with potential for S3. It can be bump to S3 if multi-file uploads are common or time-consuming in our product's workflows.

S2

Minor usability issues (medium priority)

S2 (Minor) with potential for S3. It can be bump to S3 if multi-file uploads are common or time-consuming in our product's workflows.

S2

Minor usability issues (medium priority)

S2 (Minor) with potential for S3. It can be bump to S3 if multi-file uploads are common or time-consuming in our product's workflows.

S2

Minor usability issues (medium priority)

S2 (Minor) with potential for S3. It can be bump to S3 if multi-file uploads are common or time-consuming in our product's workflows.

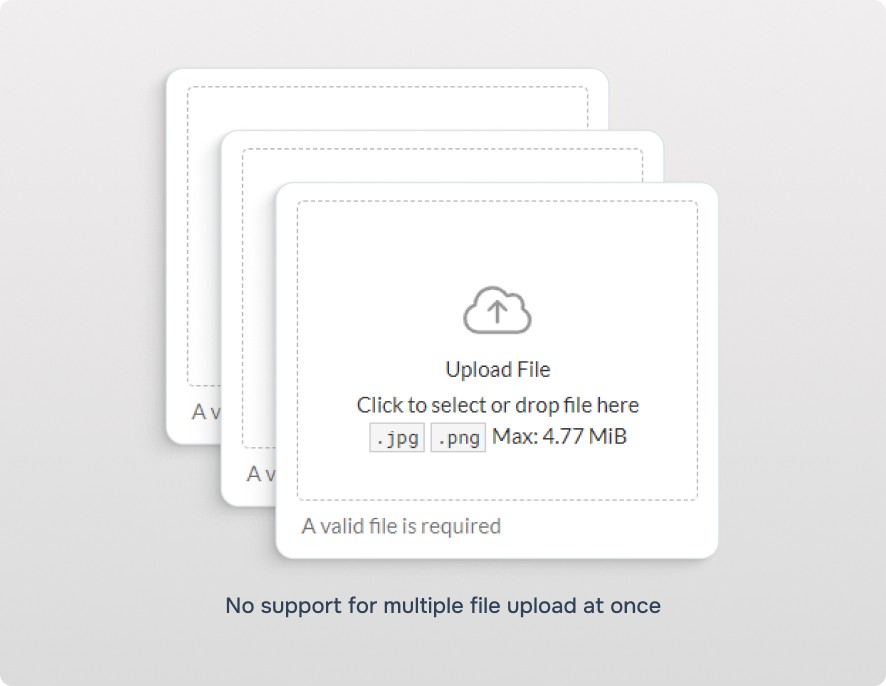

Image to show no support for multiple file upload
Image to show no support for multiple file upload
Image to show no support for multiple file upload
Image to show no support for multiple file upload
Image to show no support for multiple file upload

Issue

Issue

Issue

Issue

Issue

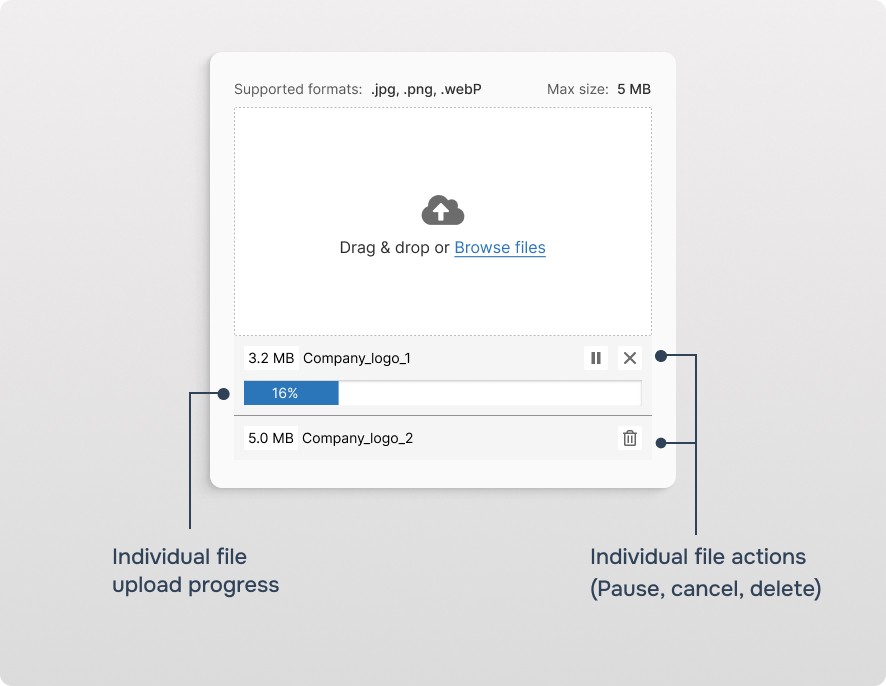

Image to show multiple file upload
Image to show multiple file upload
Image to show multiple file upload
Image to show multiple file upload
Image to show multiple file upload

Recommendation

Recommendation

Recommendation

Recommendation

Recommendation

H8 - Aesthetic and Minimalist Design

H8 - Aesthetic and Minimalist Design

No violation found

No violation found

No violation found

No violation found

No violation found

H9 - Help Users Recognize, Diagnose, and Recover from Errors

H9 - Help Users Recognize, Diagnose, and Recover from Errors

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

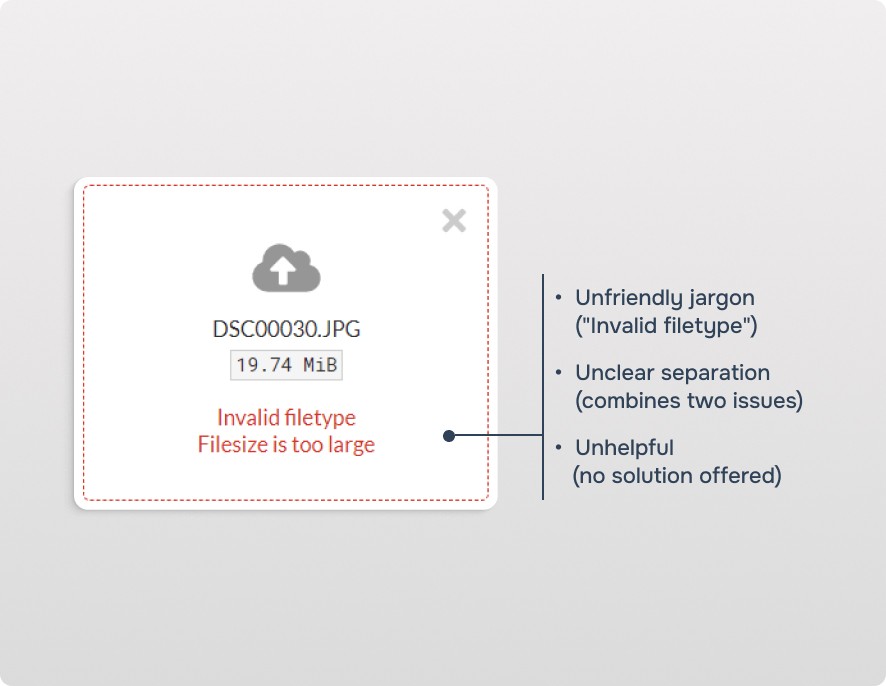

Image to show current error writing
Image to show current error writing
Image to show current error writing
Image to show current error writing
Image to show current error writing

Issue

Issue

Issue

Issue

Issue

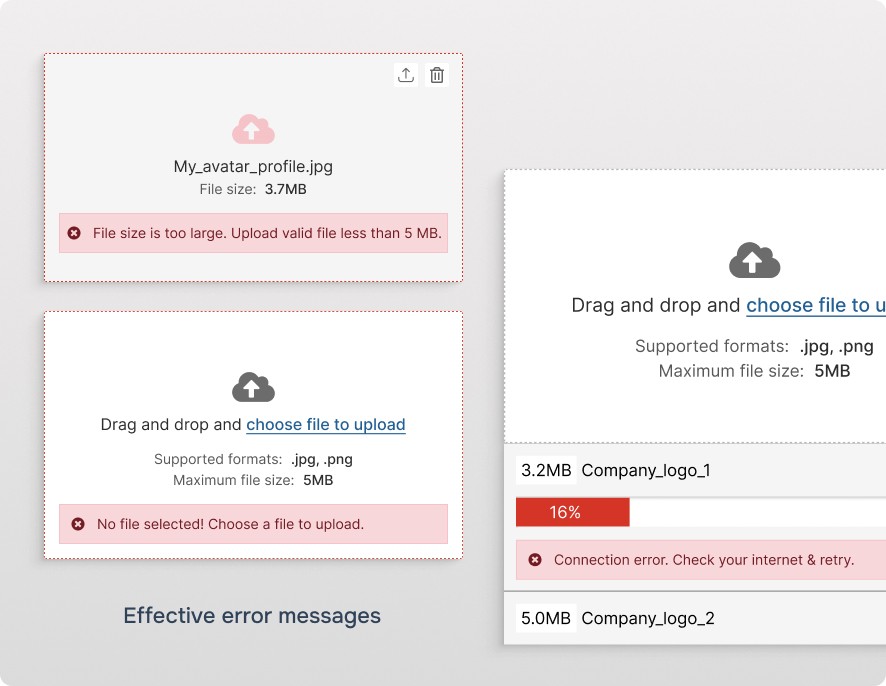

Image to show three examples of better error writing
Image to show three examples of better error writing
Image to show three examples of better error writing
Image to show three examples of better error writing
Image to show three examples of better error writing

Recommendation

Recommendation

Recommendation

Recommendation

Recommendation

H10 - Help and Documentation

H10 - Help and Documentation

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

S1

Cosmetic fixes (low priority)

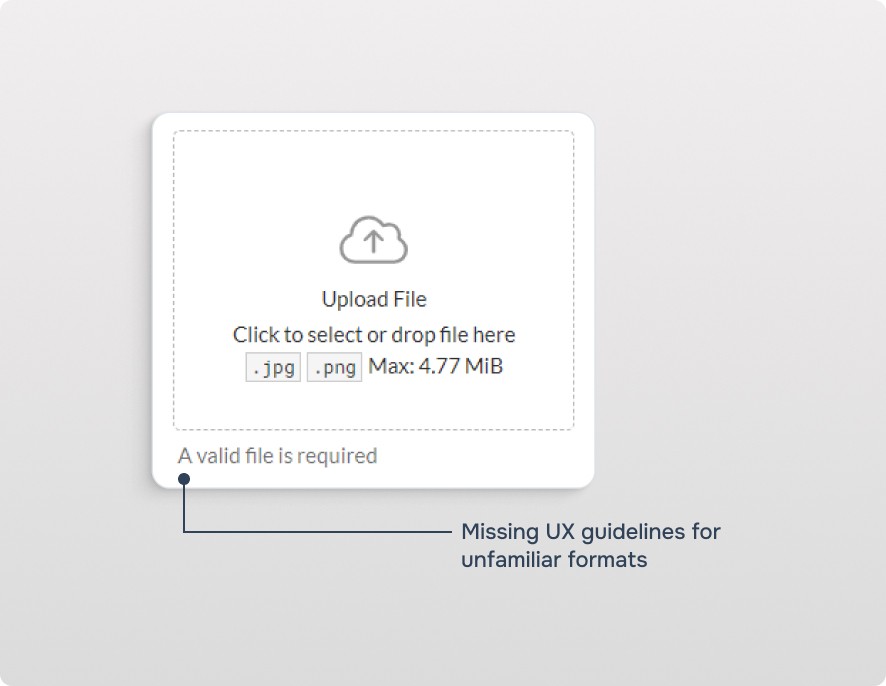

Image to show lack of UX guidelines for where to mention special formatted files
Image to show lack of UX guidelines for where to mention special formatted files
Image to show lack of UX guidelines for where to mention special formatted files
Image to show lack of UX guidelines for where to mention special formatted files
Image to show lack of UX guidelines for where to mention special formatted files

Issue

Issue

Issue

Issue

Issue

Image to show how to mention specially formatted files
Image to show how to mention specially formatted files
Image to show how to mention specially formatted files
Image to show how to mention specially formatted files
Image to show how to mention specially formatted files

Recommendation

Recommendation

Recommendation

Recommendation

Recommendation

Heuristic Evaluation Summary

Heuristic Evaluation Summary

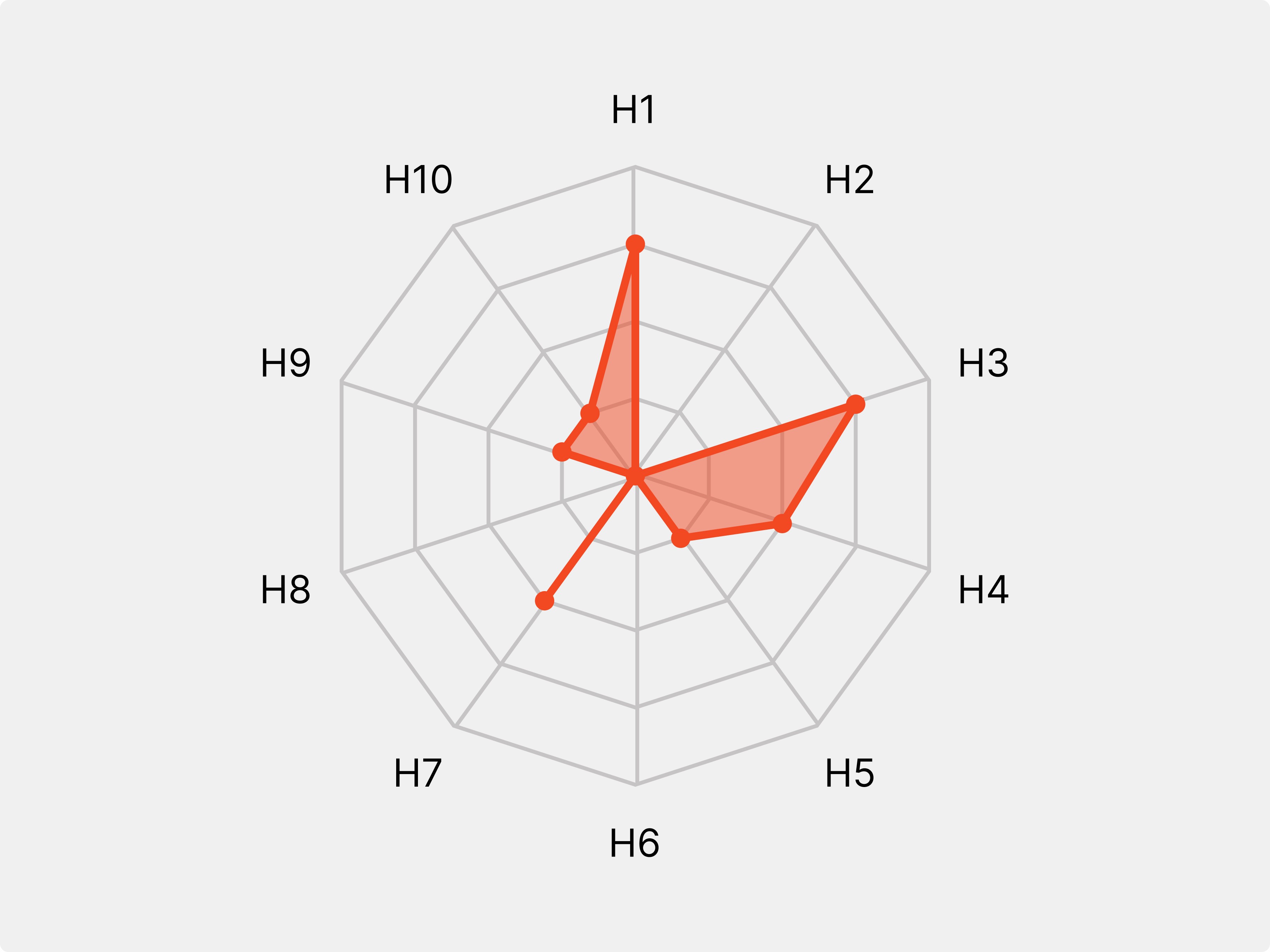

I generated a radar chart to provide an overview of the areas where the file uploader component is lacking. This visual representation highlights the strengths and weaknesses identified during the evaluation.

A radar chart illustrating the summary of the heuristic evaluation for the file uploader component. The chart displays multiple axes, each representing a different usability heuristic. The axes include Visibility of System Status, Match Between System and the Real World, User Control and Freedom, Consistency and Standards, Error Prevention, Recognition Rather Than Recall, Flexibility and Efficiency of Use, Aesthetic and Minimalist Design, Help Users Recognize, Diagnose, and Recover from Errors, and Help and Documentation. The chart highlights areas of strength and weakness, with higher values indicating better performance. Notable areas for improvement include User Control and Freedom, and Error Prevention, which show lower values compared to other heuristics
A radar chart illustrating the summary of the heuristic evaluation for the file uploader component. The chart displays multiple axes, each representing a different usability heuristic. The axes include Visibility of System Status, Match Between System and the Real World, User Control and Freedom, Consistency and Standards, Error Prevention, Recognition Rather Than Recall, Flexibility and Efficiency of Use, Aesthetic and Minimalist Design, Help Users Recognize, Diagnose, and Recover from Errors, and Help and Documentation. The chart highlights areas of strength and weakness, with higher values indicating better performance. Notable areas for improvement include User Control and Freedom, and Error Prevention, which show lower values compared to other heuristics
A radar chart illustrating the summary of the heuristic evaluation for the file uploader component. The chart displays multiple axes, each representing a different usability heuristic. The axes include Visibility of System Status, Match Between System and the Real World, User Control and Freedom, Consistency and Standards, Error Prevention, Recognition Rather Than Recall, Flexibility and Efficiency of Use, Aesthetic and Minimalist Design, Help Users Recognize, Diagnose, and Recover from Errors, and Help and Documentation. The chart highlights areas of strength and weakness, with higher values indicating better performance. Notable areas for improvement include User Control and Freedom, and Error Prevention, which show lower values compared to other heuristics
A radar chart illustrating the summary of the heuristic evaluation for the file uploader component. The chart displays multiple axes, each representing a different usability heuristic. The axes include Visibility of System Status, Match Between System and the Real World, User Control and Freedom, Consistency and Standards, Error Prevention, Recognition Rather Than Recall, Flexibility and Efficiency of Use, Aesthetic and Minimalist Design, Help Users Recognize, Diagnose, and Recover from Errors, and Help and Documentation. The chart highlights areas of strength and weakness, with higher values indicating better performance. Notable areas for improvement include User Control and Freedom, and Error Prevention, which show lower values compared to other heuristics
A radar chart illustrating the summary of the heuristic evaluation for the file uploader component. The chart displays multiple axes, each representing a different usability heuristic. The axes include Visibility of System Status, Match Between System and the Real World, User Control and Freedom, Consistency and Standards, Error Prevention, Recognition Rather Than Recall, Flexibility and Efficiency of Use, Aesthetic and Minimalist Design, Help Users Recognize, Diagnose, and Recover from Errors, and Help and Documentation. The chart highlights areas of strength and weakness, with higher values indicating better performance. Notable areas for improvement include User Control and Freedom, and Error Prevention, which show lower values compared to other heuristics

#

#

Heuristic

Heuristic

Severity

Severity

H1

H1

Visibility of System Status

Visibility of System Status

3

3

H2

H2

Match Between System and the Real World

Match Between System and the Real World

0

0

H3

H3

User Control and Freedom

User Control and Freedom

3

3

H4

H4

Consistency and Standards

Consistency and Standards

2

2

2

H5

H5

Error Prevention

Error Prevention

1

1

H6

H6

Recognition Rather Than Recall

Recognition Rather Than Recall

0

0

H7

H7

Flexibility and Efficiency of Use

Flexibility and Efficiency of Use

2

2

H8

H8

Aesthetic and Minimalist Design

Aesthetic and Minimalist Design

0

0

H9

H9

Help Users Recognize, Diagnose, and Recover from Errors

Help Users Recognize, Diagnose, and Recover from Errors

1

1

H10

H10

Help and Documentation

Help and Documentation

1

1

Accessibility Guidelines

Accessibility Guidelines

1

Labeling form fields

All form fields should have a clear and visible label associated with them.

1

Labeling form fields

All form fields should have a clear and visible label associated with them.

1

Labeling form fields

All form fields should have a clear and visible label associated with them.

<label htmlFor="file-upload">Select File:</label>
<input type="file" id="file-upload" required>

2

Labeling form fields

Clearly indicate required fields within their labels.

2

Labeling form fields

Clearly indicate required fields within their labels.

2

Labeling form fields

Clearly indicate required fields within their labels.

<label htmlFor="file-upload">Select File *:</label>
<input type="file" id="file-upload" required>

3

Associating Help or Error Text with File Picker

Connect the File Picker component to its related help or error text using the aria-describedby attribute.

3

Associating Help or Error Text with File Picker

Connect the File Picker component to its related help or error text using the aria-describedby attribute.

3

Associating Help or Error Text with File Picker

Connect the File Picker component to its related help or error text using the aria-describedby attribute.

<label htmlFor="file-upload">Select File *:</label>
<input type="file" id="file-upload" required aria-describedby="file-upload-help">
<p id="file-upload-help">Supported file formats: PDF, DOCX, TXT</p>

Next steps

  • Proposal Development: Created a comprehensive document outlining findings, recommendations, and potential impact.

  • Stakeholder Communication: Discussed and refined the proposal based on stakeholder feedback, paving the way for implementation.

Learnings

  • Heuristics 101: Performed a first-time heuristic evaluation, gaining a practical understanding of applying user-centered design principles.

  • B2B File Uploader Complexity: Discovered the diverse and potentially intricate nature of file uploaders in B2B environments.

  • Sparking Discussions, Sparking Ideas: Learned how stakeholder engagement during the heuristic evaluation led to valuable discussions and ignited initiatives for further improvement.

More projects

Swipe to declutter: Sponge

Swipe to Declutter: Sponge

How Sponge Conquered Gallery Chaos ?

Swipe to declutter: Sponge

Swipe to Declutter: Sponge

How Sponge Conquered Gallery Chaos ?

Swipe to declutter: Sponge

Swipe to Declutter: Sponge

How Sponge Conquered Gallery Chaos ?

Swipe to declutter: Sponge

Swipe to Declutter: Sponge

How Sponge Conquered Gallery Chaos ?

Swipe to declutter: Sponge

Swipe to Declutter: Sponge

How Sponge Conquered Gallery Chaos ?

Security reporting dashboard - Persona driven reporting

Security Reporting Dashbaord

Persona Driven Reporting

Security reporting dashboard - Persona driven reporting

Security Reporting Dashbaord

Persona Driven Reporting

Security reporting dashboard - Persona driven reporting

Security Reporting Dashbaord

Persona Driven Reporting

Security reporting dashboard - Persona driven reporting

Security Reporting Dashbaord

Persona Driven Reporting

Security reporting dashboard - Persona driven reporting

Security Reporting Dashbaord

Persona Driven Reporting

All projects

All projects

All projects

All projects

All projects
